PCB drill 0,2mm

Action
2,66 € –30 %
p2j d 050
2,66 € –30 % 1,86 € / pcs 1,54 € excl. VAT 1,86 € / 1 pcs
In stock (246 pcs)
Delivery to:
18/11/2024

For drilling holes with high possitional accuracy and for drilling of small through holes and vias.

Detailed information

Product detailed description

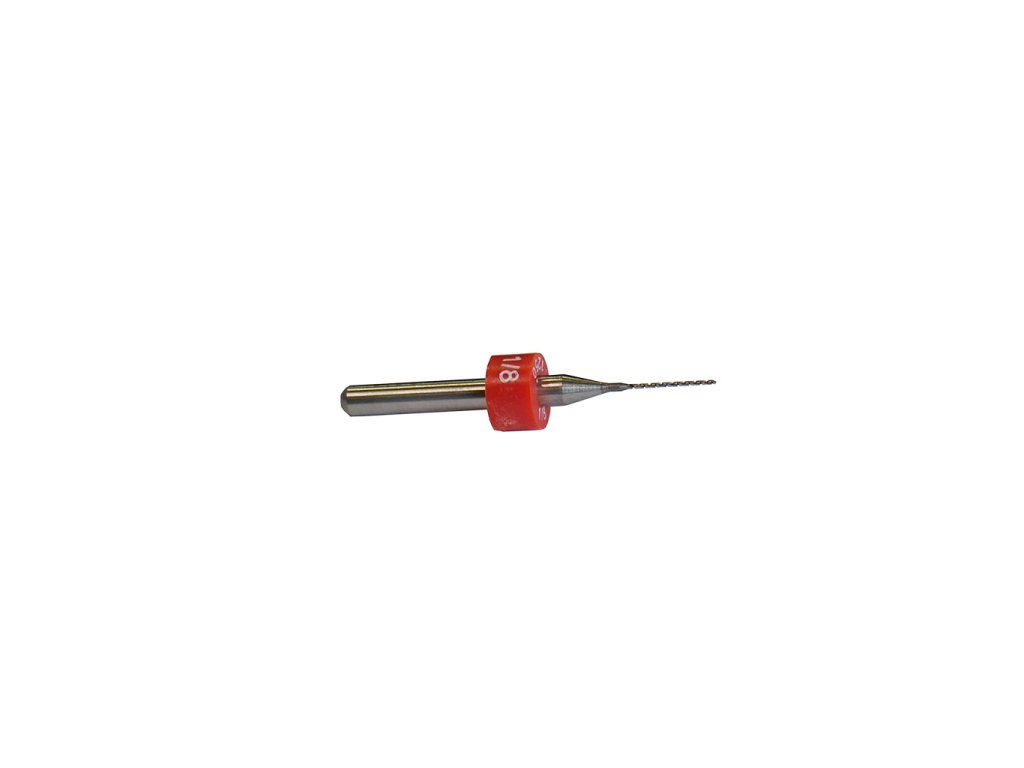

0,2mm PCB drill bit

Suitable for all standard PCBs made from FR4 base material.

Applications:

For drilling of small holes with high possitional accuracy and for drilling of small through holes and vias.

Advantages:

Excellent hole wall quality.
High positional accuracy.
Efficient chip removal.

Parameters:

Total lenght: 38mm
Spiral lenght: 3,5mm
Tip angle: 118º
Shaft diameter: 3,175mm

Recomended machining parameters:

Spindle speed: 125000RPM
Feed rate: 1,4m/min
Chip load: 11µm/rev
Retraction: 4m/min

*Recomended machining parameters provide guidelines which acts as starting points for optimising speeds and feeds at the user's end.

Additional parameters

Category: PCB drill bits
Tool type: Drill
Diameter: 0,2mm
