4MILL300ATC - AUTOMATED PCB PROTOTYPING

PCB up to 200 × 140 mm · 1 μm resolution · 60,000 RPM · 12-position Automatic Tool Changer

4MILL300ATC - AUTOMATED PCB PROTOTYPING

Product detailed description

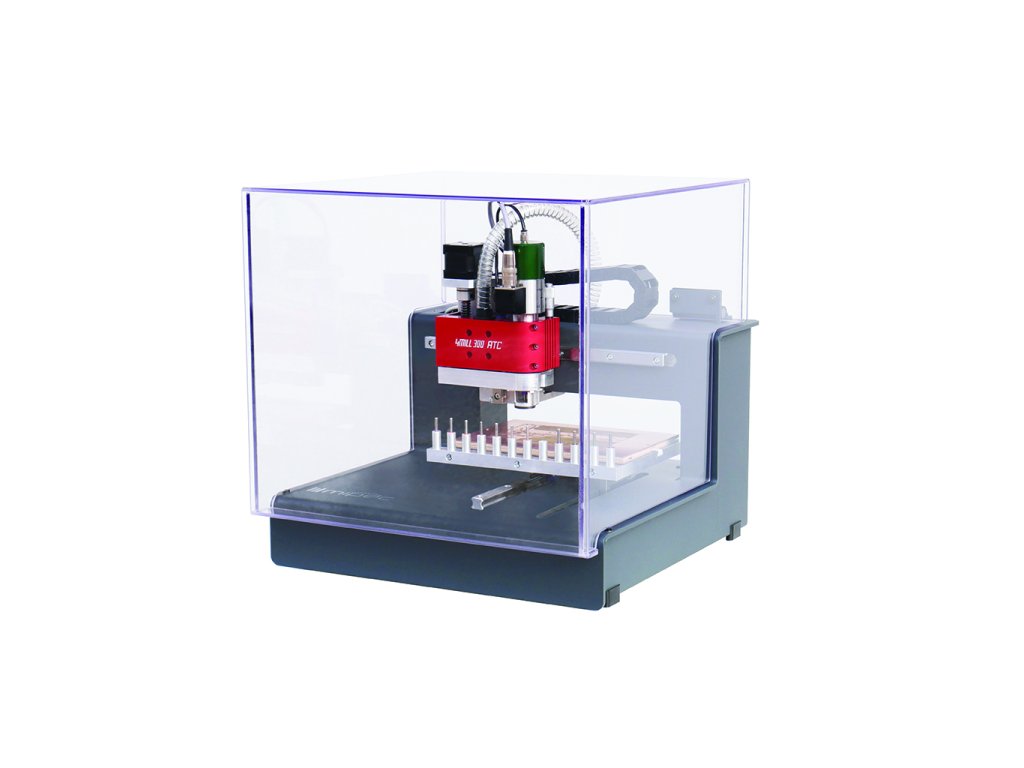

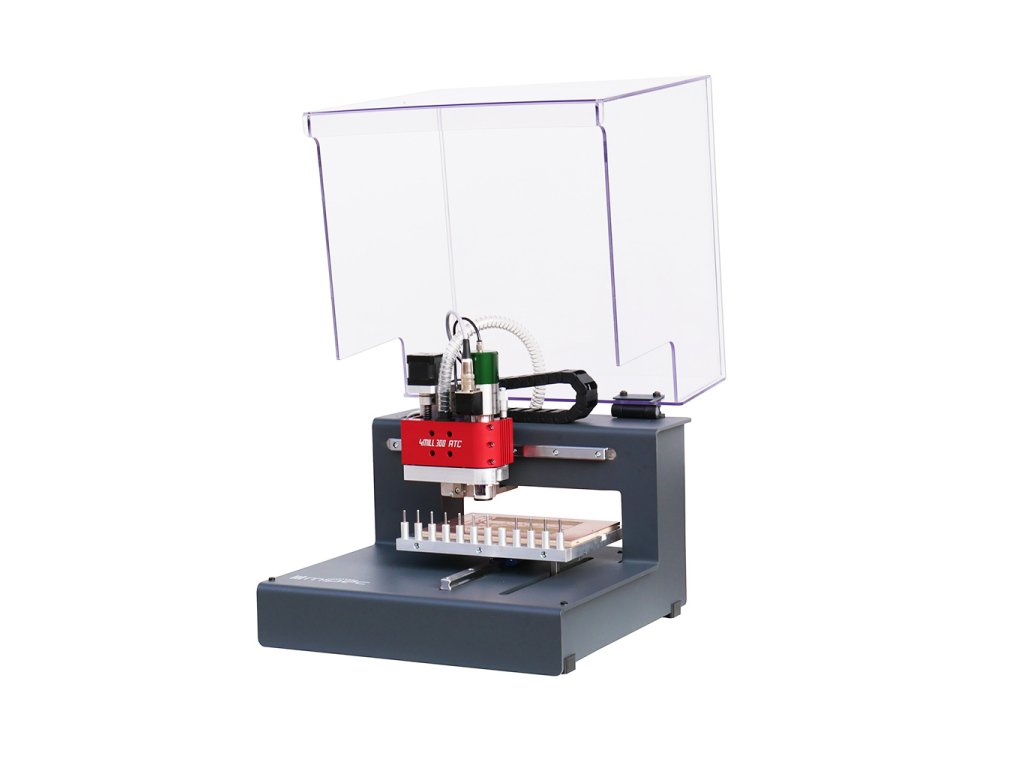

Automated Desktop CNC Milling Machine for PCB Prototyping

Automate multi-tool PCB machining and keep prototype production directly inside your laboratory.

The 4MILL300ATC is a professional desktop CNC milling machine designed specifically for automated PCB prototyping. Its compact 200 × 140 mm PCB working area makes it suitable for electronics laboratories, universities and R&D teams that need efficient in-house production of prototype circuit boards.

The machine combines PCB milling, precision drilling and board routing with a 12-position Automatic Tool Changer. It can automatically switch between milling cutters, drill bits and routing tools during a prepared machining job, reducing operator intervention and simplifying the production of complex PCB prototypes.

01
200 × 140 mm Maximum PCB size
02
60,000 RPM High-speed brushless spindle
03
1 µm Machine resolution
04
12 Tools Automatic Tool Changer

Built for Automated PCB Machining

PCB prototyping typically requires several different tools, including isolation milling cutters, drill bits of multiple diameters and contour-routing tools. A desktop PCB CNC machine with automatic tool changing can perform these operations as one continuous prepared machining process.

The 4MILL300ATC stores up to 12 tools in its automatic tool magazine. During a prepared CNC machining job, the machine automatically changes between the required PCB milling, drilling and routing tools without manual tool replacement between individual operations.

This makes the 4MILL300ATC particularly suitable for complex PCB prototypes involving multiple hole diameters and machining operations, where repeated manual tool changes would otherwise interrupt the workflow.

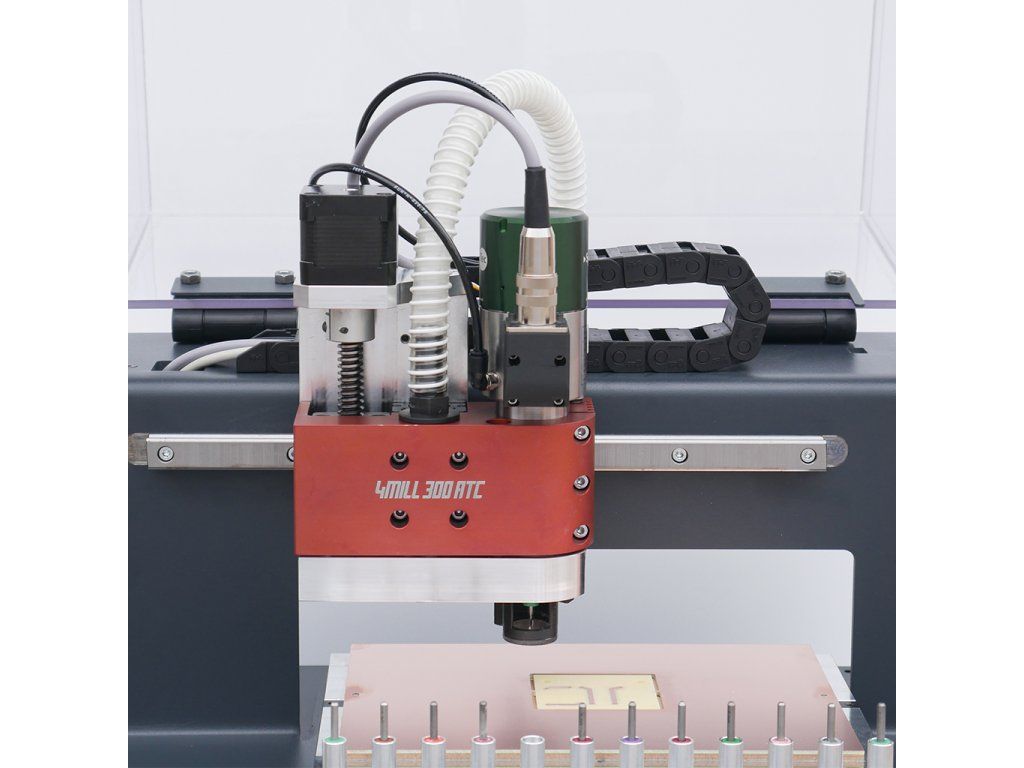

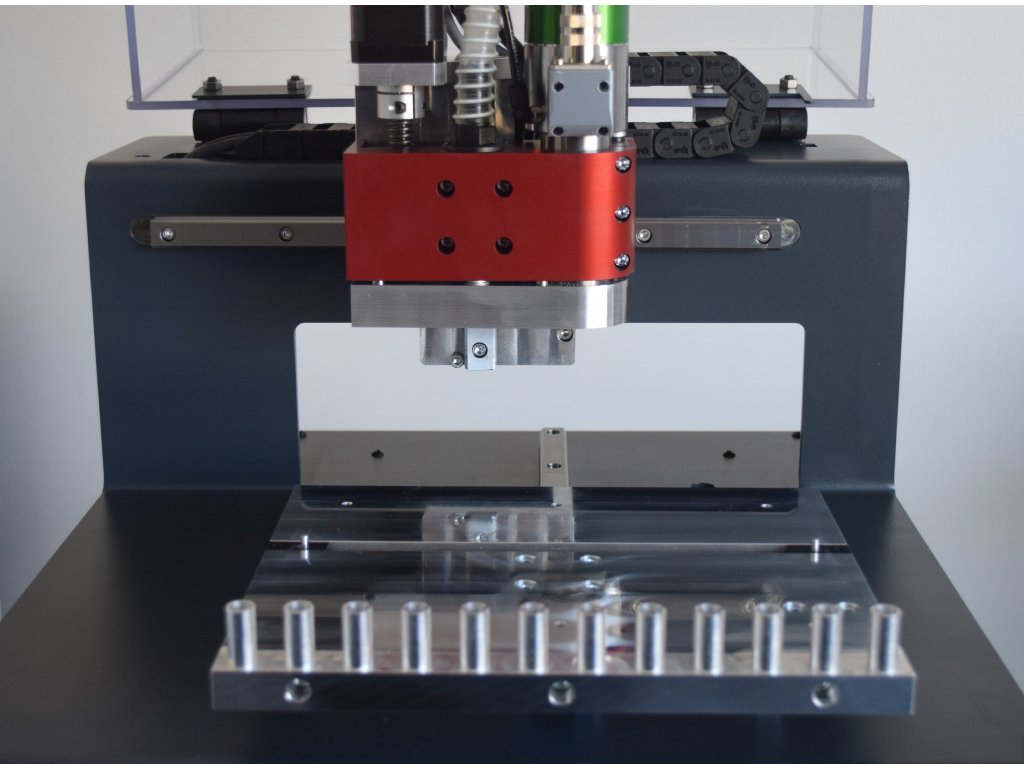

12-Position Automatic Tool Changer

Milling, drilling and contour-routing tools can be prepared in the tool magazine before the job begins. The PCB CNC system then performs the required tool changes automatically according to the prepared machining process.

See the 4MILL300ATC in Action

Watch the machine produce a double-sided PCB, then see how the automatic tool magazine is prepared in TrackMaker. Both videos are part of our step-by-step setup guide.

Designed for Professional In-House Prototyping

01
Automatic Multi-Tool Jobs
02
Single & Double-Sided PCBs
03
Precision Milling & Drilling
04
PCB Contour Routing
05
Integrated Dust Extraction Path
06
Laboratory & R&D Operation

PCB Milling Results

The following examples show the types of prototype PCB structures the 4MILL300ATC can produce, from complete board layouts to copper tracks, isolation paths and drilled holes.

Complete mechanically milled prototype PCB with copper features and drilled holes
Complete prototype PCB with milled copper features and drilled holes.
Close-up of copper tracks and isolation paths on a mechanically milled PCB
Close-up view of copper tracks and the isolation paths between them.
Detail of milled antenna board
Detail of milled antenna board.

See the result on your own PCB design. Submit your Gerber and Excellon data for review and sample manufacture. Test Your Design with MIPEC →

Integrated Dust Extraction Path

Milling and drilling PCB materials generates fine machining particles that should be removed directly from the working area.

The 4MILL300ATC features an integrated dust extraction path designed to remove machining particles directly from the PCB milling area. For operation, it is connected to an external dust extraction unit.

For a fully integrated setup, the desktop CNC machine can be combined with the MIPEC DEU-400 Dust Extraction Unit , developed specifically for MIPEC 4MILL PCB milling machines.

Automatic Extraction with DEU-400

When connected to the MIPEC DEU-400, dust extraction can operate automatically together with the milling spindle. The extraction unit starts when machining begins and switches off when the spindle stops, eliminating the need for separate manual control.

Explore MIPEC DEU-400 →

From PCB Data to a Physical Prototype

The 4MILL300ATC performs the physical machining stage of the MIPEC PCB prototyping workflow. Prepared PCB manufacturing data is converted into CNC milling, precision drilling and routing operations that produce the physical prototype board.

Learn more about the complete PCB Milling & Drilling workflow .

TrackMaker CAM Software Included

TrackMaker provides the CAM and machine-control environment for the 4MILL300ATC.

It supports preparation of CNC machining jobs from standard PCB manufacturing data and controls the milling, drilling, routing and automatic tool-change workflow.

Explore TrackMaker PCB CAM Software →

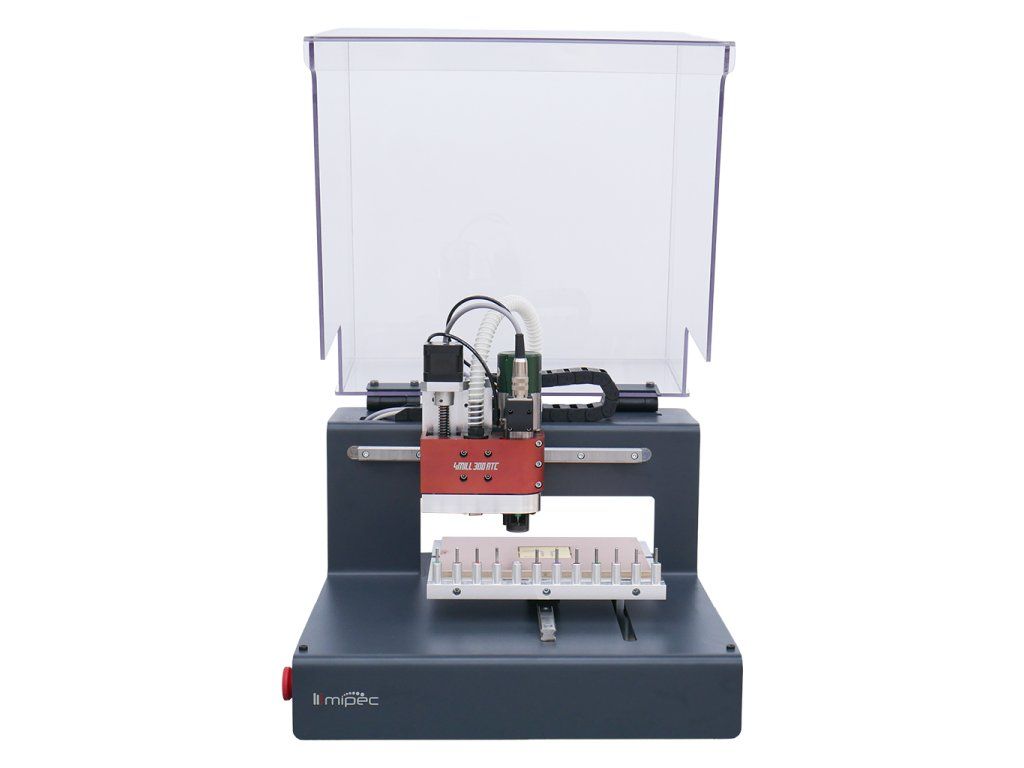

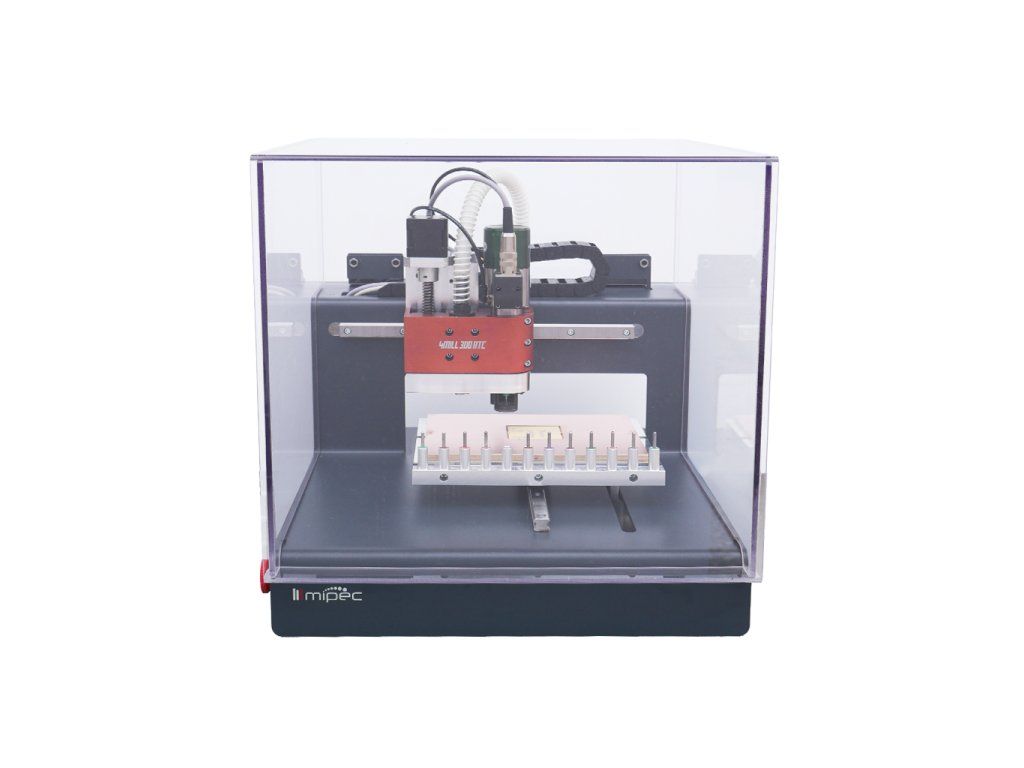

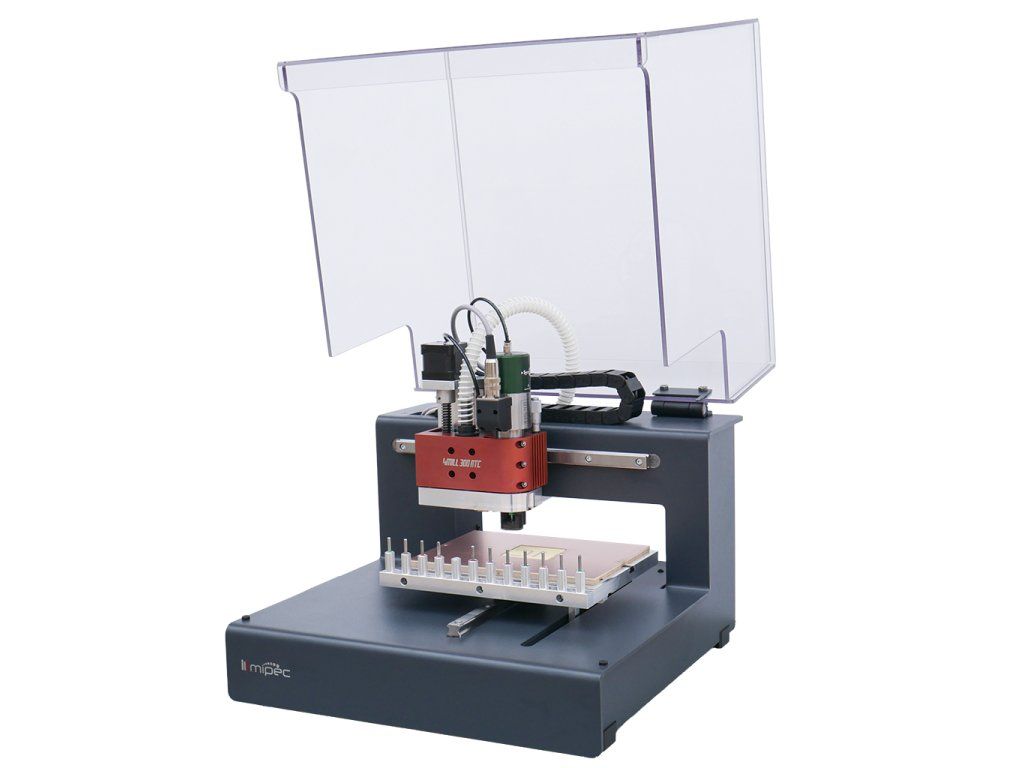

Complete Workstation – Scope of Delivery

The 4MILL300ATC is supplied as a complete automated PCB CNC machining workstation with the key components required for installation and initial operation.

MIPEC 4MILL300ATC CNC PCB milling machine with integrated cabinet

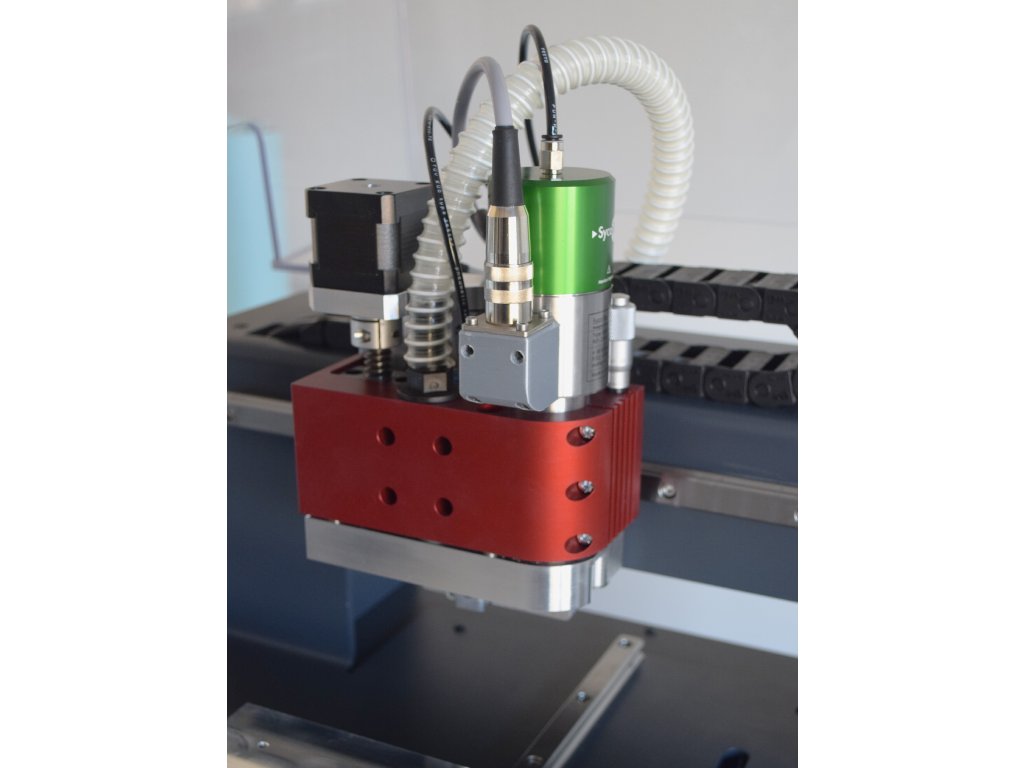

High-frequency milling spindle
12-position automatic tool magazine
Integrated dust extraction path for connection to an external extraction unit
TrackMaker CAM software supplied on a USB drive; online activation.
Starter kit of carbide milling cutters, engraving tools and drill bits
Required power supplies and USB communication cables
Digital documentation library

Installation Requirements

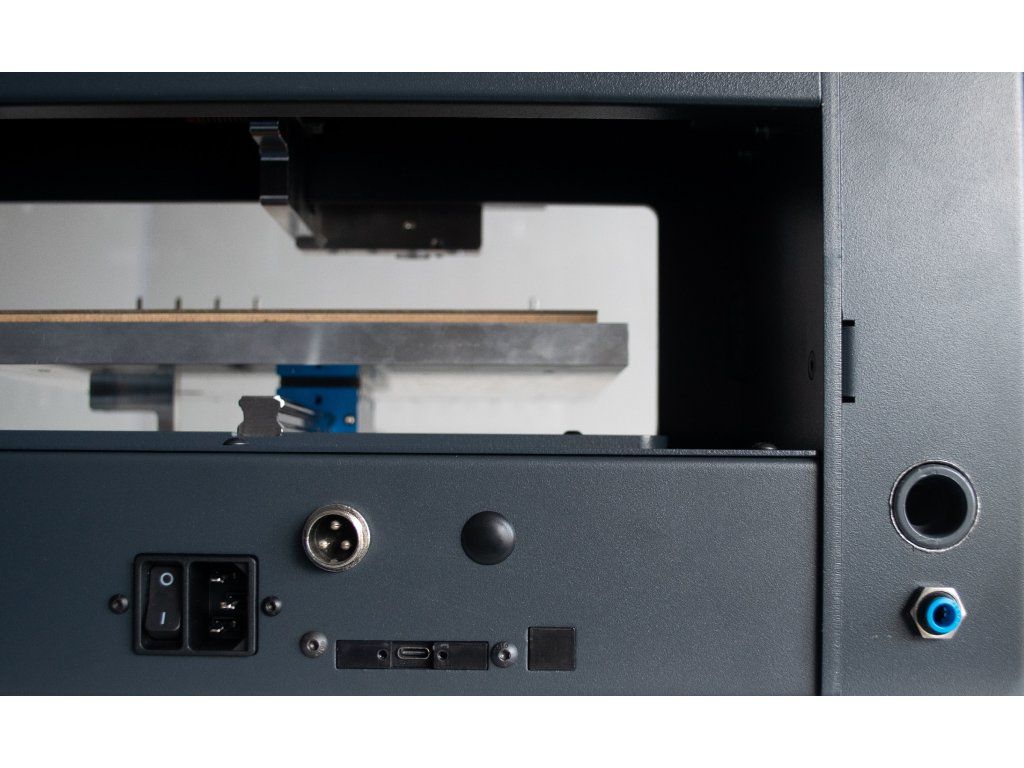

In addition to the electrical supply and USB connection, the automatic tool-changing system requires a compressed-air connection.

Required air supply: 0.6 MPa, 50 l/min, 6 mm connection.

Compressed Air Required

Plan the compressed-air connection as part of the installation of the 4MILL300ATC. This is an important difference compared with the manually operated tool-change system of the 4MILL300.

Technical Specifications

Maximum PCB size 200 × 140 mm
Milling spindle Software-controlled brushless motor, max. 60,000 RPM
Resolution 1 µm
Repeatability ±0.005 mm
Tool changer Automatic, 12-position
Tool holder 3.175 mm
Milling depth adjustment µm precise depth adjustment
Drilling speed Up to 120 strokes/min
Travel speed X/Y 60 mm/s
X/Y/Z drives Hybrid motors

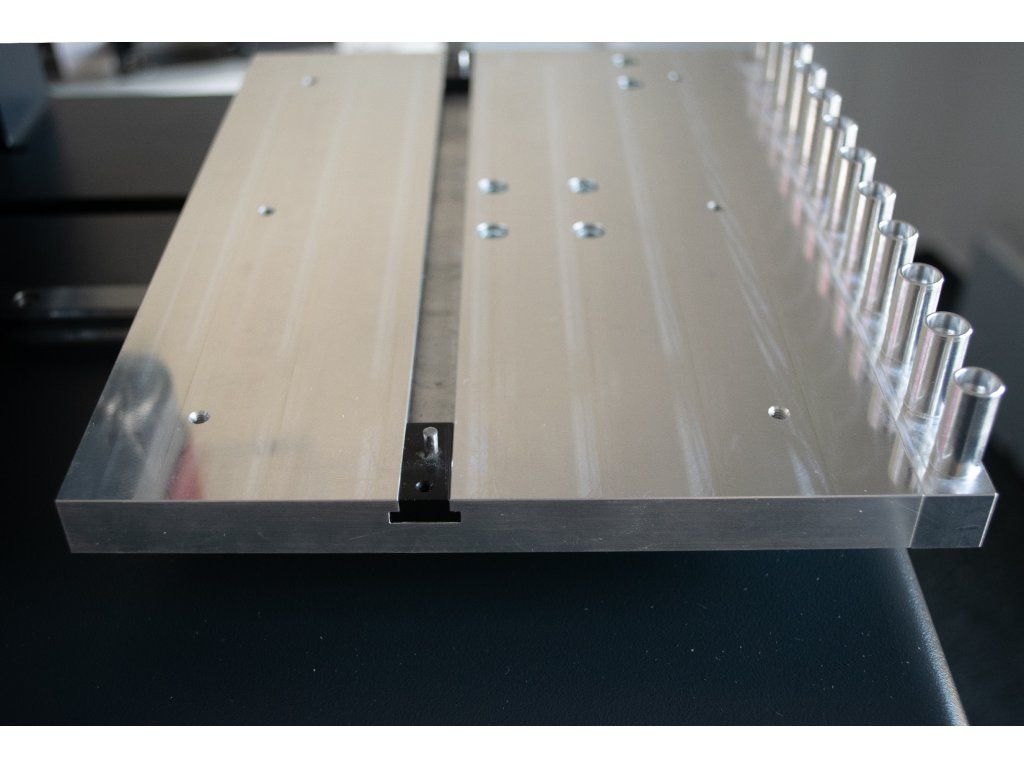

Machine table Flat milled aluminium table with central T-slot
Dimensions 420 × 455 × 435 mm
Weight 42 kg
Power supply 115 / 230 V, 50–60 Hz
Rated power 320 W
Air supply 0.6 MPa, 50 l/min, 6 mm connection
Current 3 A
Software TrackMaker, PC connection via USB cable

Is the 4MILL300ATC Right for Your Laboratory?

The 4MILL300ATC is designed for laboratories and R&D teams that want a compact desktop CNC milling machine for PCB prototyping combined with automatic tool changing and reduced operator intervention during multi-tool machining jobs. Our guide to choosing a PCB milling machine explains how board size, tool changing and installation requirements affect the choice of model.

4MILL300

Compact desktop PCB milling system with a 200 × 140 mm working area and tool-free manual Push & Turn tool changing. Best suited for education, laboratories and general PCB development.

4MILL300ATC

Automated desktop PCB CNC system with the same compact PCB format and a 12-position Automatic Tool Changer for multi-tool jobs and reduced operator intervention.

4MILL600

Larger-format CNC PCB milling solution for bigger PCB panels and applications requiring increased working area.

Compare All MIPEC PCB Milling Machines →

From PCB Design to a Finished Assembly

CAM & data preparation → milling & drilling → through-hole connection → solder paste application → component placement → reflow

Explore the Complete Workflow →
