    PCB milling machine 4MILL600

    4mill600a9
    15 064,50 € / pcs 12 450 € excl. VAT
    On request
    Delivery to:
    05/12/2024

    Large format PCB protoyping machine.

    Detailed information

    Related products

    professional toolset
    Professional toolset - 50pcs of tools, 20 pcs of copper clads and 10 pcs of drill underlay material
    In stock (1 pcs)
    318 € excl. VAT
    384,78 €

    Professional toolset offers 50pcs of tools and 20pcs of copper clads for PCB prototyping - standard engraving tool 0,2 - 0,5mm, which is suitable for milling insulation paths...

    243
    vacuum
    Dust extraction unit for PCB milling machines
    In stock (2 pcs)
    890 € excl. VAT
    1 076,90 €

    The MIPEC DEU-400 is dust extraction unit with absolute filter eliminates fibers, chips, and fine dust from milling or drilling proces. The integrated autoswitch function...

    DEU-400
    FAV0415
    Through-hole plating tool FAVORIT
    In stock (1 pcs)
    320 € excl. VAT
    387,20 €

    Favorit is cost effective manualy-operated press for copper rivets, especially for mechanical through-hole-plating of PCB prototypes. Rivet ensures optimal contact, even without...

    249
    p2j cr 200a
    Action
    5,45 € –30 %
    Contour router 2mm
    In stock (334 pcs)
    3,15 € excl. VAT
    3,81 €

    PCB chip breaker router is mainly used for cutting outer contours of PCBs and is also use for routing holes bigger than 3mm and inner contours of PCBs.

    210
    Show all related products

    Product detailed description

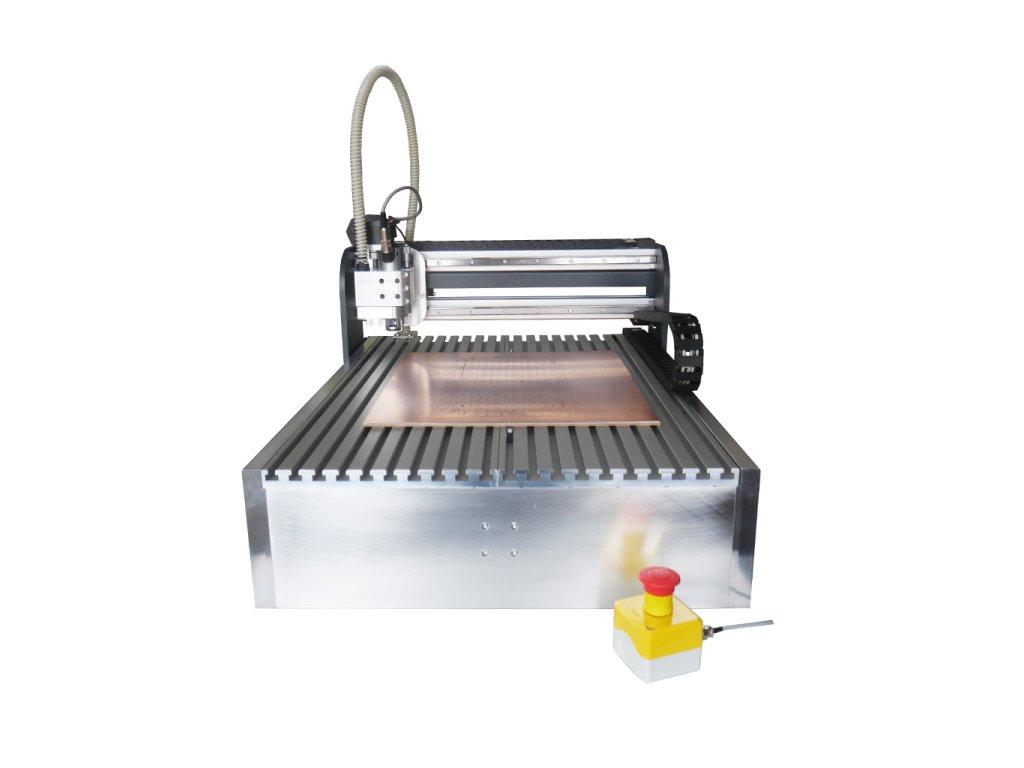

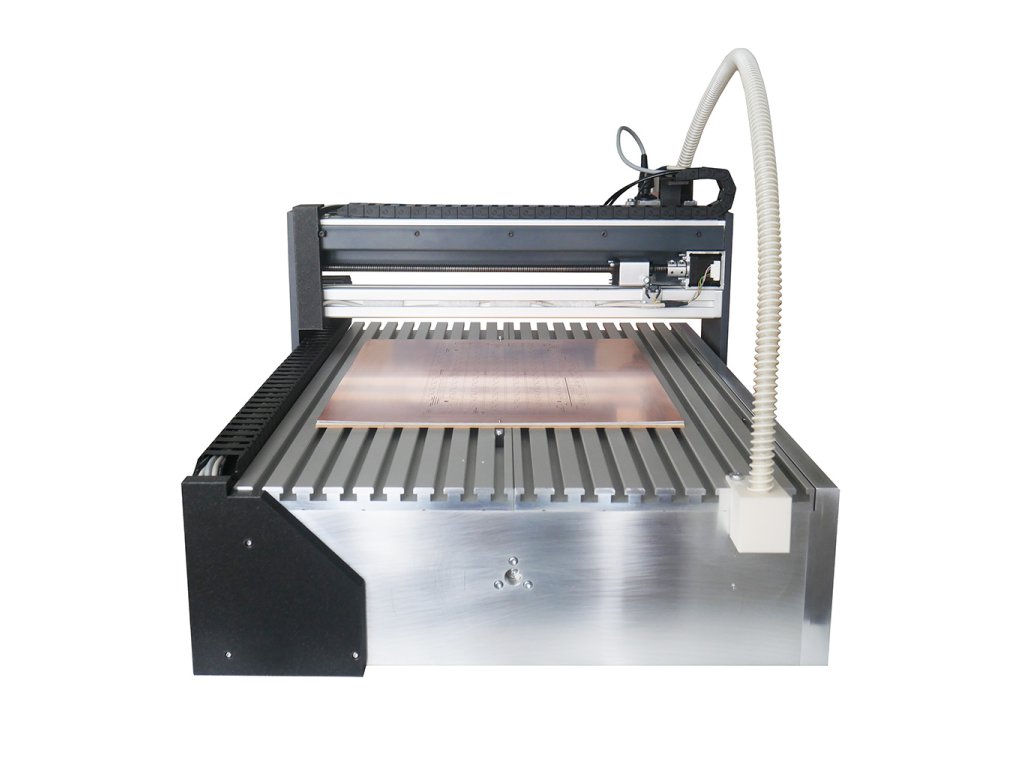

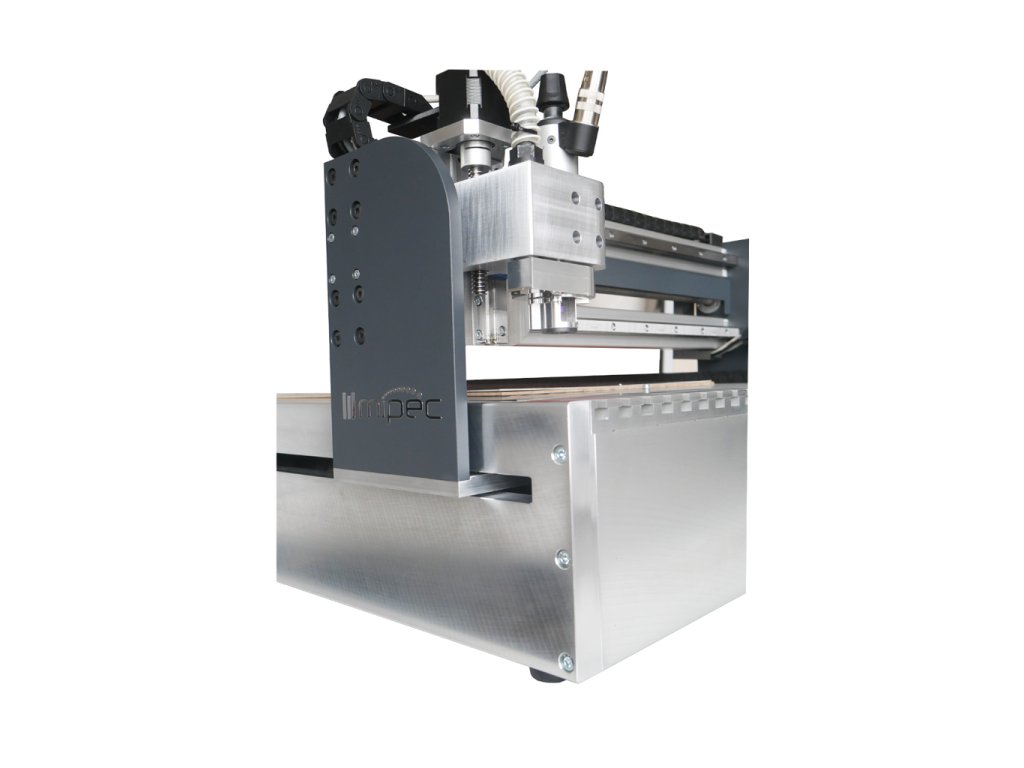

    PCB milling machine 4MILL600

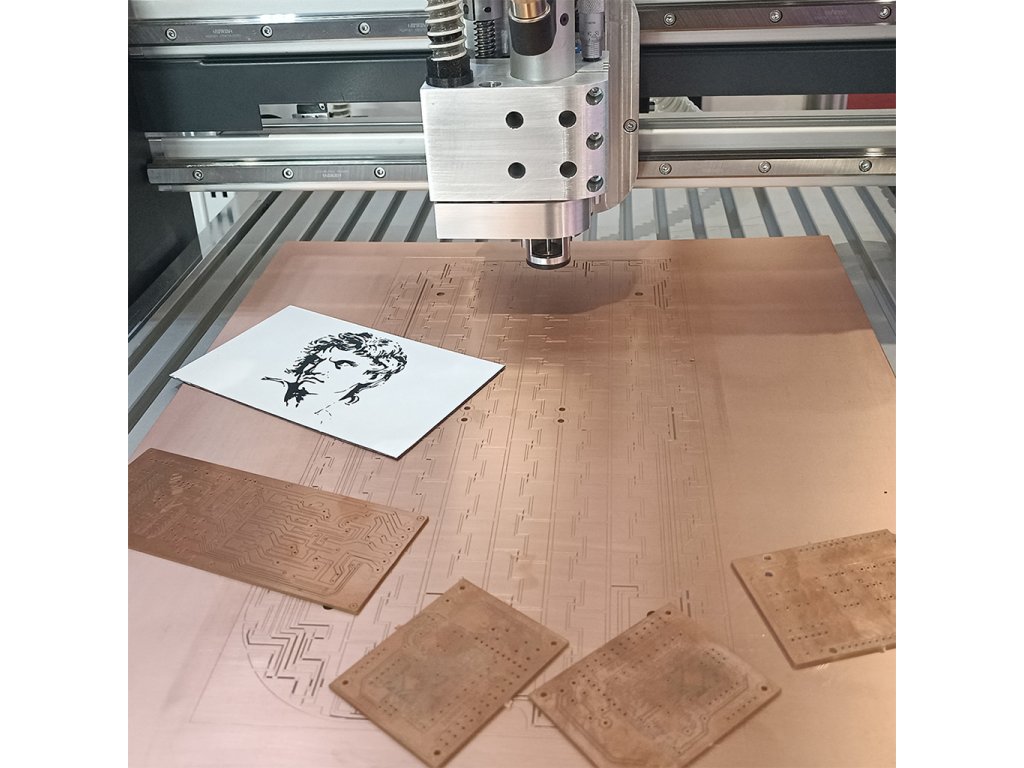

    is a large professional machine used as an ideal training solution for schools and universites as well as ideal machine for development and design laboratories. Make your double-sided PCB’s or LED pannels in minutes using 4MILL. Thanks to its hi-precision leadscrews and 60K HF spindle motor we can handle standard PCB designs, SMD, RF and various other applications. Do you need to drill holes from 0.2mm and/or mill  tracks and insulation paths from 0.1mm? 4MILL is the machine for you!

    4MILL600 ensures quick and easy  production of PCB's prototypes in your lab. 4MILL600 is the step into the world of Printed Circuit Board Prototyping in proffesional way.

    Standard features on the 4MILL600 include:

    • HF spindle motor(60.000RPM)
    • Ultra fine resolution (1um),
    • Accuracy (0,03mm)
    • Suitable for double sided PCB's
    • Simple and fast PUSH&TURN tool holder



    Applications

    4MILL machines are perfect tools for developing and producing PCB prototypes but not only for these jobs! 4MILL is also suitable for variety of appliations:

    • Structuring Circuit Boards
    • Depaneling of PCBs
    • Engraving or cutting front pannels
    • Machining of plastics, wood or Aluminium



    Parameters
    Max. working area 385 x 500 x 40mm
    Max. PCB size 297 x 420 mm
    Spindle motor software controlled brushless motor, max. 60.000RPM
    Resolution 1µm
    Repeatability ±3µm
    Tool clamp 1/8″ (3.175mm)
    Tool changer Manual
    Milling depth adjustment: µm precise depth adjustment
    Drilling speed up to 120 strokes/min
    Travel speed 40 mm/s
    X/Y/Z motors hybrid motors
    Machine table Flat milled aluminum table with central T-slot
    Dimensions W575 x D780 x H430
    Weight 70kg
    Power supply 115/230V, 50-60Hz
    Compressed air not required
    Software TrackMaker (included)



    With professional machine comes professional software

    With professional machine comes professional software! TrackMaker, packed with features for quick processing and milling of your data. Load all layers with one click and start milling right away. Powerful for super-users and user-friendly for beginners. In fact, we are convinced that this is the most user-friendly package on the market.



    Machine is delivered together with full license of TrackMaker software and starter set of tools consisting from:

    Universal cutter for 0,2 - 0,5mm paths 2pcs
    Micro cutter for 0,1 - 0,15mm paths 1pcs
    Contour router 2mm 1pcs
    End mill 1mm 1pcs
    Drill bit 0,6mm 1pcs
    Drill bit 0,8mm 1pcs
    Drill bit 1mm 1pcs
    Drill bit 1,5mm 1pcs
    Drill bit 3mm 1pcs
    Copper plates FR4, format A5, 2 sided 5pcs
    Copper plates FR4, format A5, 1 sided 5pcs
    Drill underlay material, format A5 2pcs
    Metal wool cleaning pad 1pcs
