Stick Feeder Block / IC Tube Feeder
For MIPEC 4PLACE · 5 × SO8 or 5 × SO16 variant · IC stick feeding · Modular workstation accessory
Product detailed description

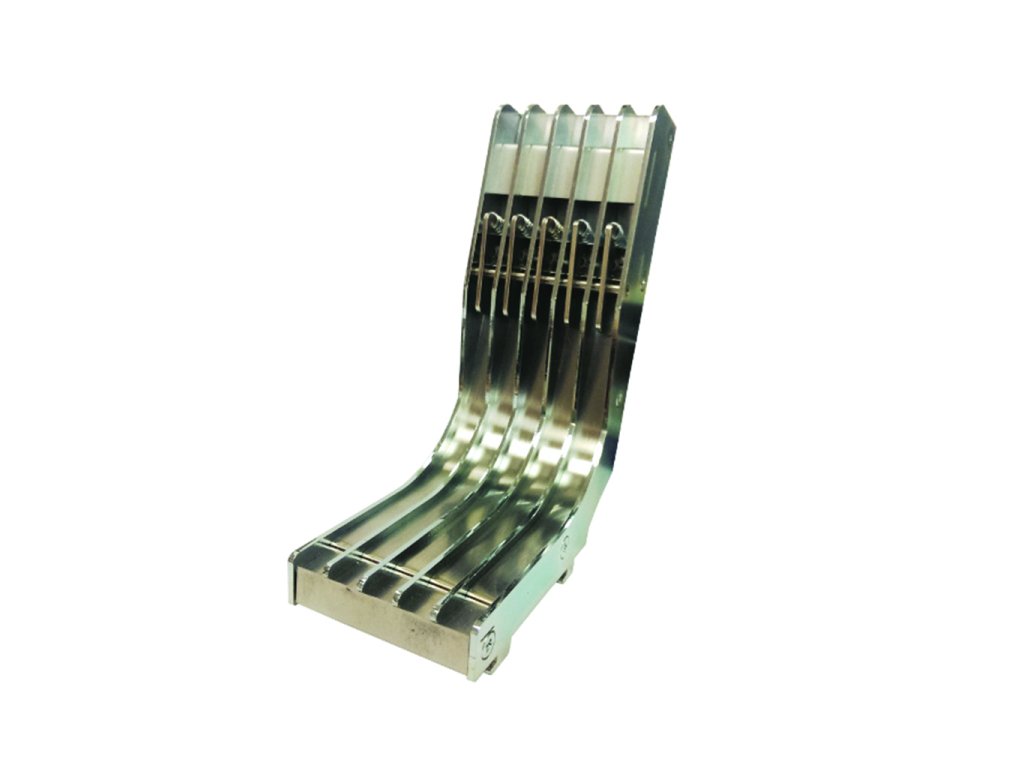

Present tube-packaged SMD components directly at the 4PLACE workstation for manual Pick & Place.
The MIPEC Stick Feeder Block is a modular accessory designed for the 4PLACE SMD manipulator. It holds component sticks in a defined position at the workstation, allowing components to be accessed directly with the vacuum pickup head during manual PCB assembly.
The feeder is available in two variants according to the component stick format: a version for five SO8 sticks and a version for five SO16 sticks.
Organized Component Presentation
During manual PCB assembly, component presentation is an important part of an efficient Pick & Place workflow. Components need to remain accessible while the operator moves between component pickup and PCB placement.
The Stick Feeder Block positions up to five component sticks directly at the 4PLACE workstation, reducing the need to repeatedly handle individual component packaging during assembly.
Components can then be picked directly from the stick using the vacuum pickup head of the 4PLACE manipulator.
Choose the Required Variant
Select the feeder according to the component stick format used in your assembly: 5 × SO8 or 5 × SO16.
Key Benefits
Two Feeder Variants
The Stick Feeder Block is available in two versions. Each version is designed around a specific component stick format.
The 5 × SO8 variant provides five positions for SO8 component sticks.
The 5 × SO16 variant provides five positions for SO16 component sticks.
Select the required version according to the component packaging used in your PCB assembly projects.
5 × SO8 or 5 × SO16
The two versions are separate product variants rather than one universal feeder. Choose the version that matches the required stick format.
Part of the 4PLACE Workstation
The Stick Feeder Block is an optional accessory for the MIPEC 4PLACE manual SMD manipulator.
It extends the workstation with organized component presentation for stick-packaged devices while the 4PLACE provides vacuum pickup, guided movement, component rotation and vision-assisted placement.
Need Components from Tape?
For SMD components supplied in carrier tape, the 4PLACE workstation can also be configured with the optional Tape Feeder Block.
Technical Specifications
| Product type | Modular IC stick feeder block |
|---|---|
| Compatibility | MIPEC 4PLACE SMD manipulator |
| Available variants | 5 × SO8 / 5 × SO16 |
| SO8 variant | 5 positions for SO8 component sticks |
| SO16 variant | 5 positions for SO16 component sticks |
| Application | Component presentation for manual SMD assembly |
Manual SMD Component Placement
Component presentation is the starting point of the manual Pick & Place cycle. After a component is picked from the feeder, it can be oriented, aligned and placed onto the prepared PCB using the 4PLACE manipulator.
Part of Pick & Place
The Stick Feeder Block supports component presentation within the MIPEC manual Pick & Place workflow.
