WORKFLOW
From PCB Design to a Finished Assembly
Move from Gerber and Excellon manufacturing data to a physical PCB prototype and assembled board using one connected in-house workflow. MIPEC provides equipment and software for data preparation, milling and drilling, through-hole connection, solder paste application, component placement and reflow.
Project Preparation
Import Gerber and Excellon manufacturing data, prepare machining operations and generate toolpaths before the physical PCB machining process begins.
Explore Project Preparation →
Milling & Drilling
Create PCB isolation paths, drill holes and route board contours using MIPEC 4MILL CNC systems directly from prepared manufacturing data.
Explore Milling & Drilling →
Through-Hole Connection

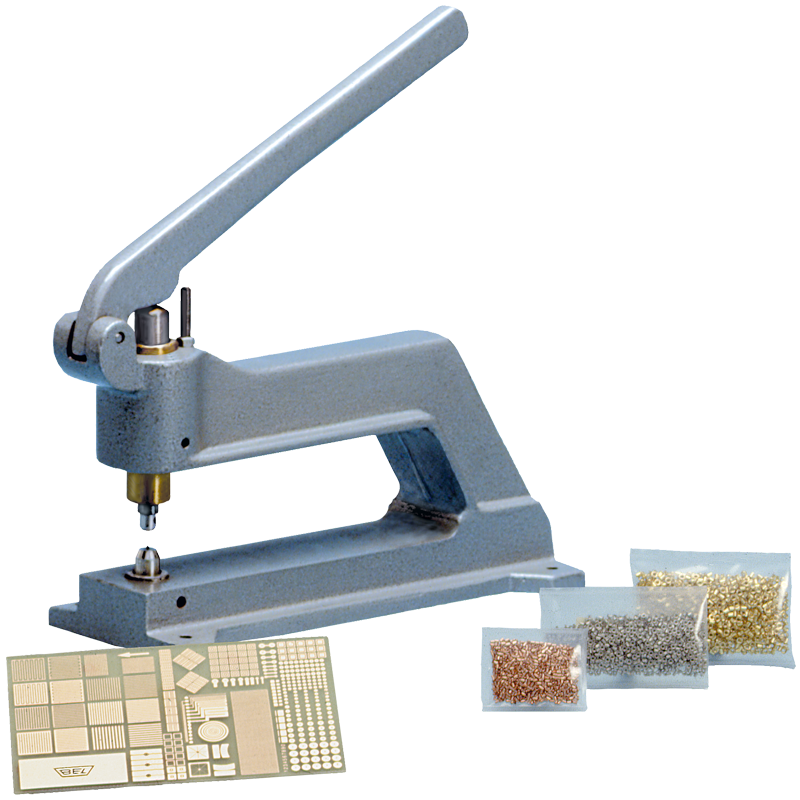

Create electrical connections between both sides of double-sided prototype PCBs using conductive rivets and dedicated mechanical through-hole connection equipment.
Explore Through-Hole Connection →
Solder Paste Application

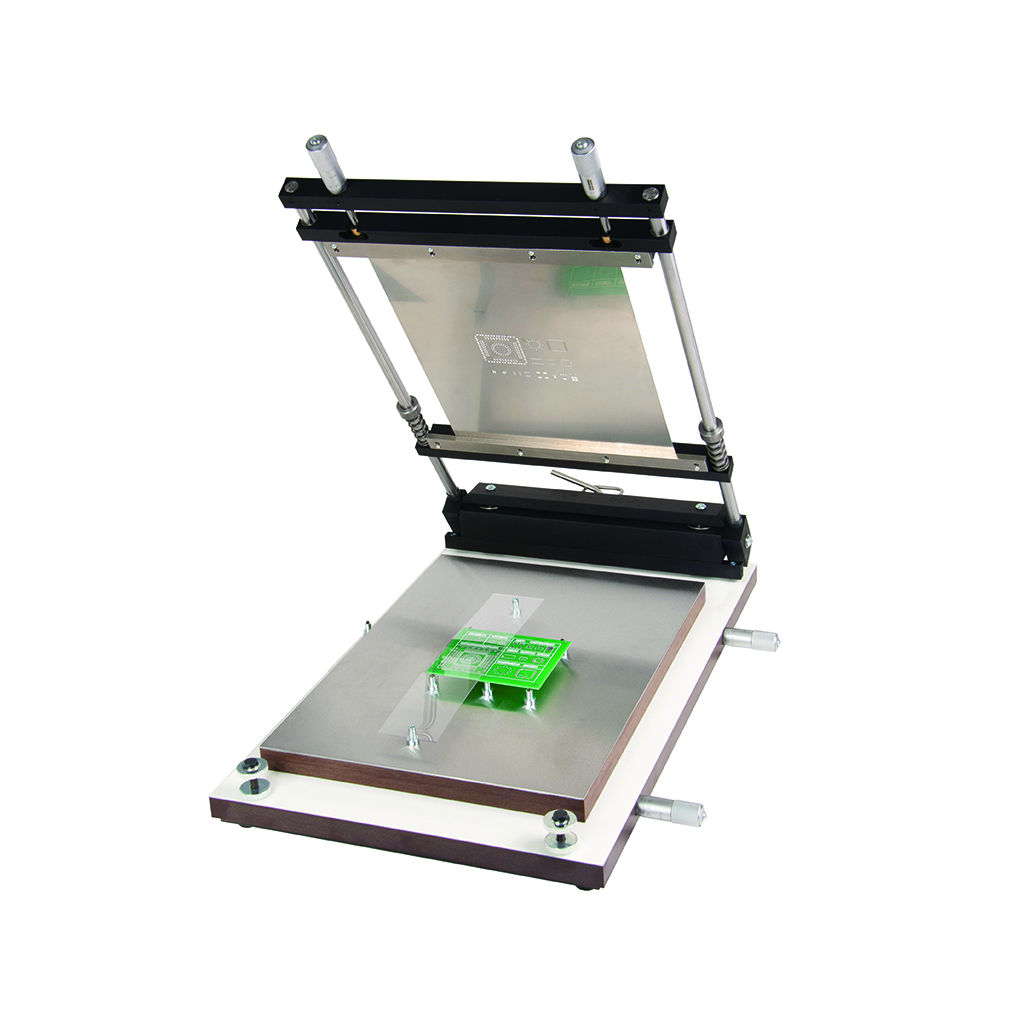

Apply solder paste to PCB pads using stencil printing or controlled dispensing according to the board design and assembly requirements.
Explore Solder Paste Application →
Component Placement

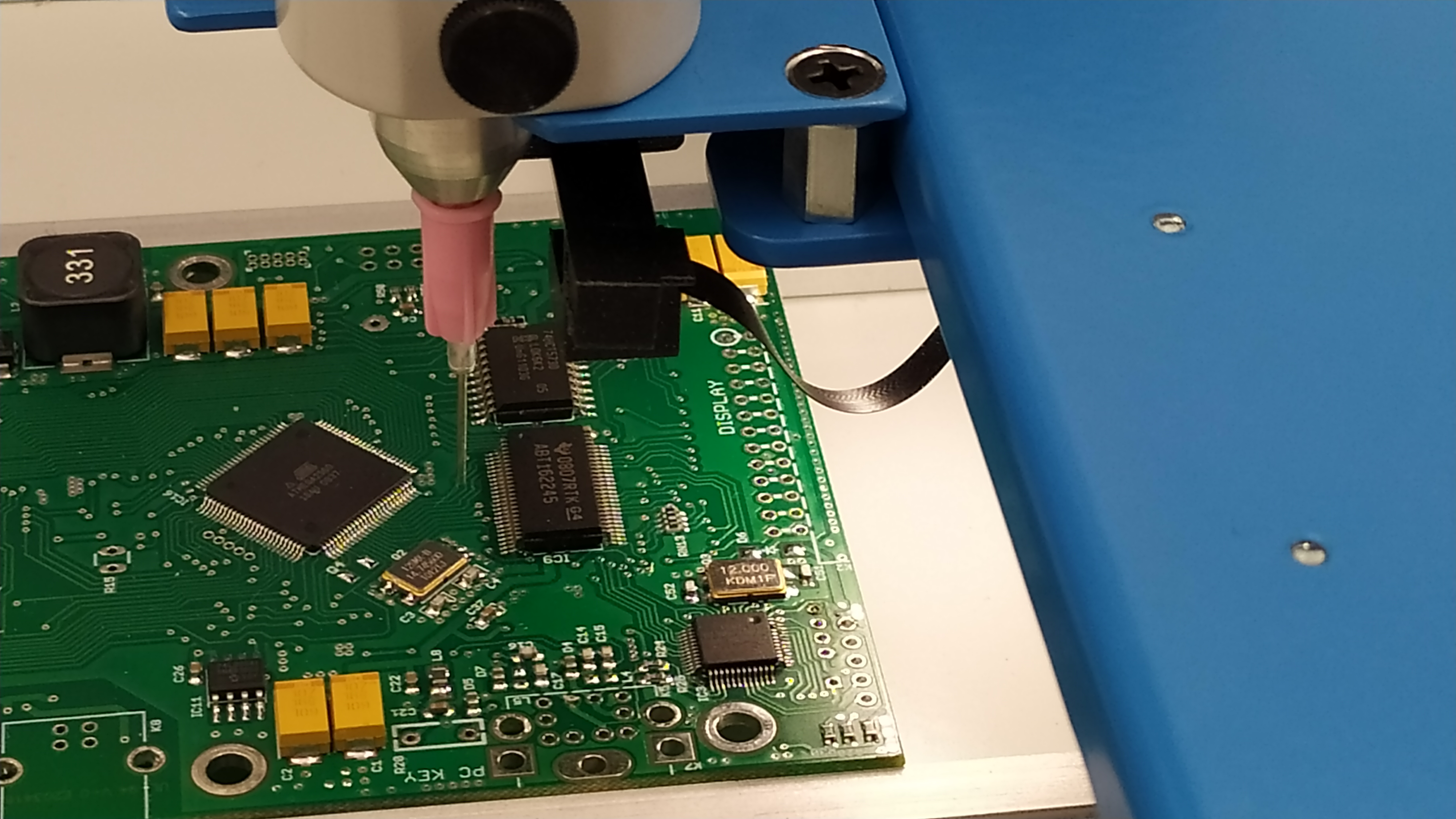

Position SMD components accurately on the prepared PCB using manual vacuum pickup, visual assistance and optional component feeders.
Explore Component Placement →
Reflow Soldering

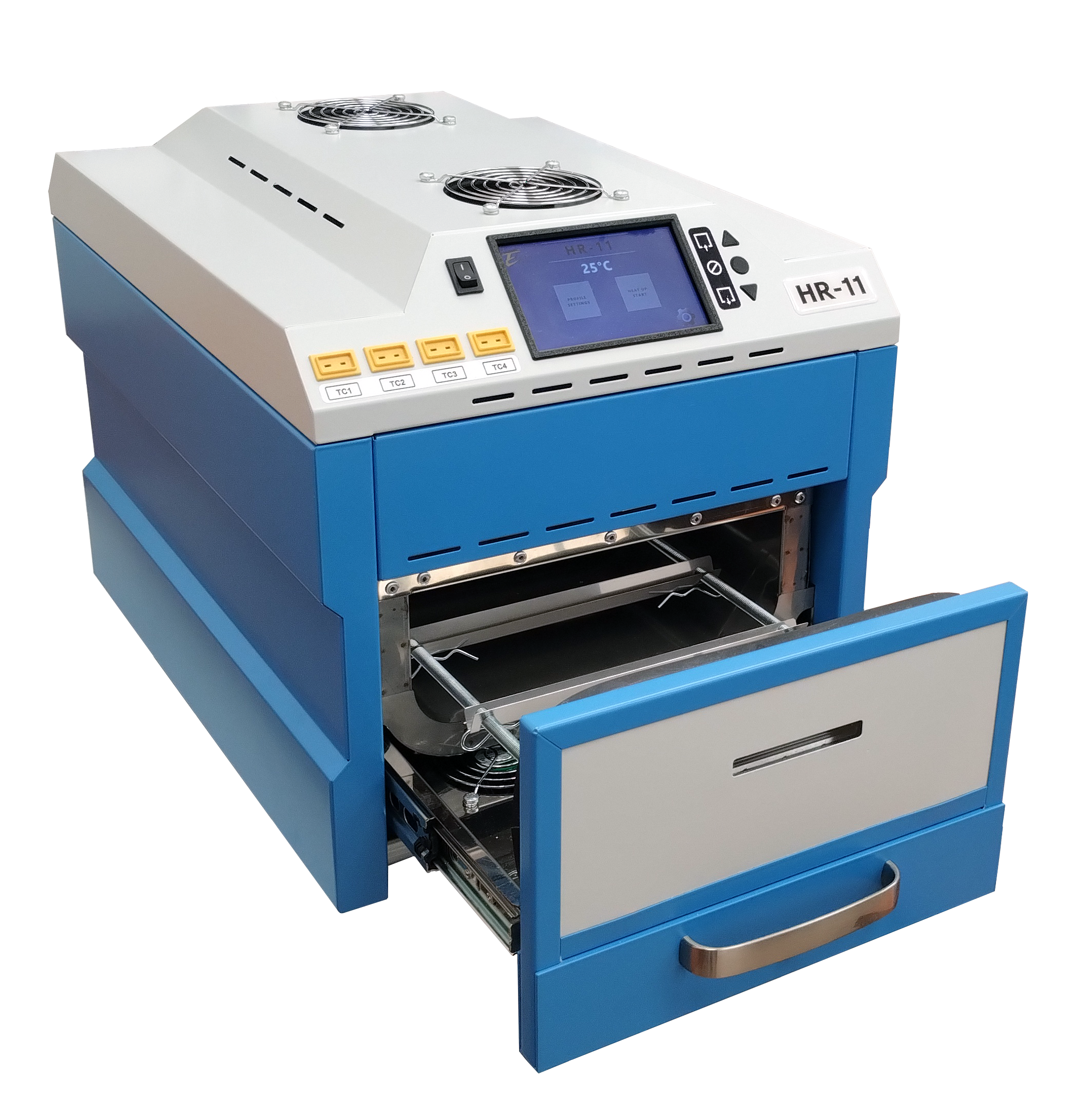

Reflow the assembled PCB using a controlled thermal process selected for the solder paste, board construction and component requirements.
Explore Reflow Soldering →Tell us what you need to manufacture in-house and we can help configure the appropriate combination of PCB milling, through-hole connection, solder paste application, component placement and reflow equipment.
